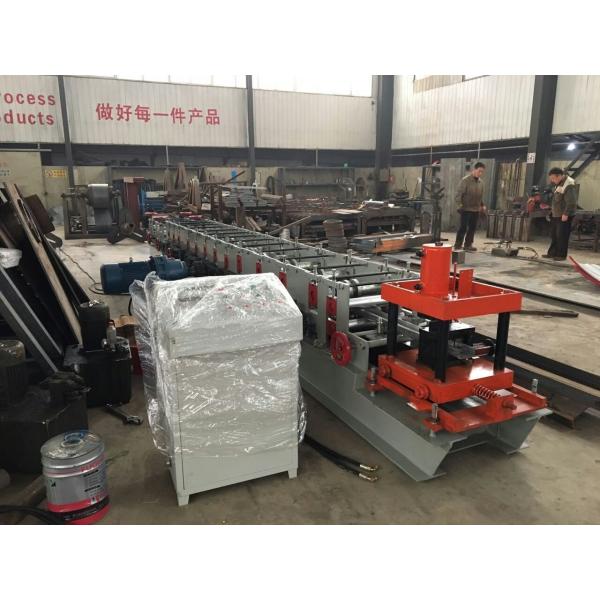

PLC Control C Purlin Roll Forming Machine / Z Section Stud Roll Forming Machine

PLC Control C Purlin Roll Forming Machine / Z Section Stud Roll Forming Machine

Brand Name : HC
Model Number : HC80-300
Certification : ISO
Place of Origin : Botou Hebei China
MOQ : 1set
Price : 15000-49000USD
Payment Terms : 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
Supply Ability : 20 sets/month
Delivery Time : 30days
Packaging Details : Main machine is nude,the computer control box is packed by carton box
Contact Now

1.size of c z purlin

C Z purlin roll forming machine/ Z section stud roll forming machine/ roll formig machine for saleC Z purlin roll forming machine/ Z section stud roll forming machine/ roll formig machine for sale


1. Processing technique and deployment of C Z purlin roll forming machin

Flow chart : Decoiler-- Roll Forming--PLC System—Hydraulic System –Pressing --Cutting —Output Table

C Z purlin roll forming machine/ Z section stud roll forming machine/ roll formig machine for sale

2. Components of line of C Z purlin roll forming machin

No.NameUnitQty
1Decoilerset1
2Entry Beachset1
3Main Machine for roll formingset1
4Cutting Systemset1
5punchingset1
6Output Tableset1
7Control System(PLC)set1
8hydraulic stationset

1

Advantage:Automatic length cutting, automatic punching, high degree of automation, quick and easy installation

Length of the main part6800mm*800mm*1200mm
Weight of main part7.2 tons
Voltage380V 50HZ 3Phase
Frame400 H steel
Drive modedifferential gear
Main axle materialGR15
Material of shafts45# steel
Diameter of shaftsφ80mm
Number of rollers12 rollers
Main power11kw(cycloidal planetary gear speed reducer)
Forming speed8m-10m/min
Adjustment methodHalf seams type Looper

Warranty

1). One year, and we will provide the technical support for the whole life.

2).Training: the buyer should charge of visa, return ticket, food and accommodation

overseas and USD50/person/day for salary.

3). Need one technicians

4).Training time: one week (contains the time of installation and adjustment)
